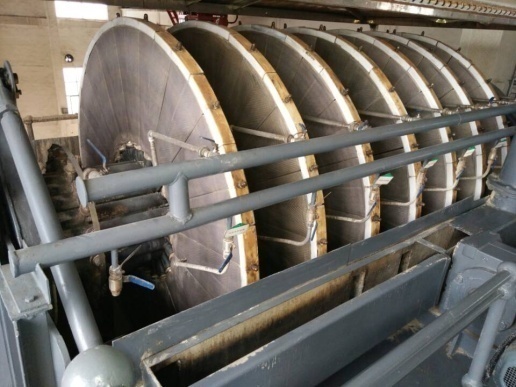

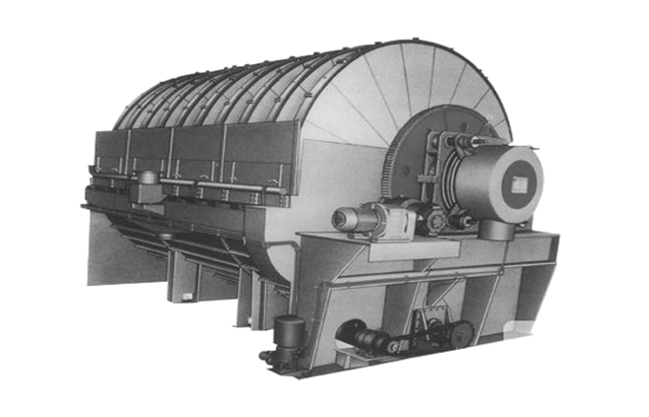

Disc vacuum filter

Disc vacuum filter is a device that uses vacuum as the filter power to separate solid from liquid. The device installs several filter disks on a horizontal hollow shaft, and each disk is divided into several small fan filter blades, each fan plate is a separate filter unit, and the filter chamber is formed by the filter cloth made of cloth. A disk vacuum filter is formed. Widely used in mining, metallurgy, chemical industry, environmental protection and other fields, is one of the important equipment for solid-liquid separation.

Product characteristics
Filter efficiently
Smallarea
Easy to operate
Operation and maintenance Low cost
Sealed well Long life
Easy to achieve large size

Working principle

The filter pan rotates, and the pulp in the filter chamber is adsorbed on the filter pan to form a filter cake. The filter cake continues to remove the water under the action of vacuum, and finally the material is discharged into the discharge tank by the back blower. The filtrate enters the distribution head through the vacuum pipe and is discharged from the drainage tank.

Technical specification

Filter area(M2)

Disc quantity

Spindle motor Power (KW)

Mixing motor Power (KW)

Long×Width×Height(MM)

Disc specification(MM)

5

1

2.2

3

2100×2480×2690

 Φ2100

5㎡/Circle

10

2

2.2

3

2500×2480×2690

15

3

2.2

3

2900×2480×2690

20

4

3

4

3300×2480×2690

25

5

3

4

3700×2480×2690

30

6

4

5.5

4100×2480×2690

35

7

4

5.5

4500×2480×2690

40

8

5.5

7.5

4900×2480×2690

45

9

5.5

7.5

5300×2480×2690

50

10

5.5

7.5

5700×2480×2690

60

12

5.5

7.5

6400×2480×2690

40

5

5.5

7.5

4400×3300×3200

 Φ2600

8㎡/Circle

48

6

5.5

7.5

4900×3300×3200

56

7

5.5

7.5

5300×3300×3200

64

8

7.5

11

5800×3300×3200

72

9

7.5

11

6200×3300×3200

80

10

7.5

11

6700×3300×3200

88

11

11

15

7100×3300×3200

96

12

11

15

7600×3300×3200

48

4

5.5

7.5

4200×4280×3740

 Φ3100

12㎡/Circle

60

5

5.5

7.5

4700×4280×3740

72

6

7.5

11

5200×4280×3740

84

7

7.5

11

5700×4280×3740

96

8

11

15

6200×4280×3740

108

9

11

15

6700×4280×3740

120

10

11

15

7200×4280×3740
